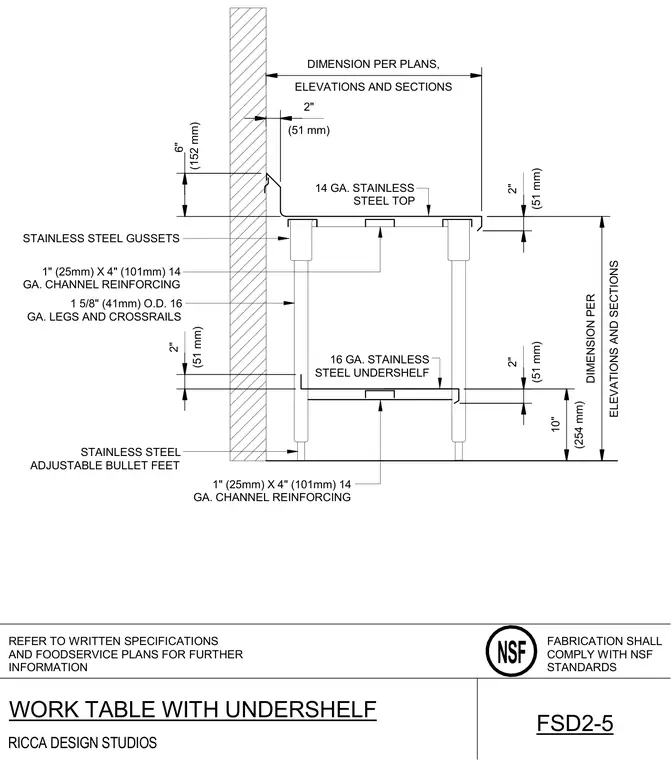

A commercial foodservice work table features a 14-gauge stainless steel top and a 16-gauge stainless steel undershelf. The top and undershelf are reinforced underneath with 1-inch by 4-inch 14-gauge steel channels. The table stands on 1-5/8-inch outside diameter 16-gauge legs and crossrails supported by stainless steel gussets and adjustable bullet feet at the base. Fabrication complies with National Sanitation Foundation standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 14 GA. STAINLESS STEEL TOP 16 GA. STAINLESS STEEL UNDERSHELF 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING STAINLESS STEEL GUSSETS 1 5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS STAINLESS STEEL ADJUSTABLE BULLET FEET 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING (152 mm) 6" ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (51 mm) 2" (51 mm) 2" ELEVATIONS AND SECTIONS DIMENSION PER (51 mm) 2" (51 mm) 2" (254 mm) 10" WORK TABLE WITH UNDERSHELF FSD2-5
