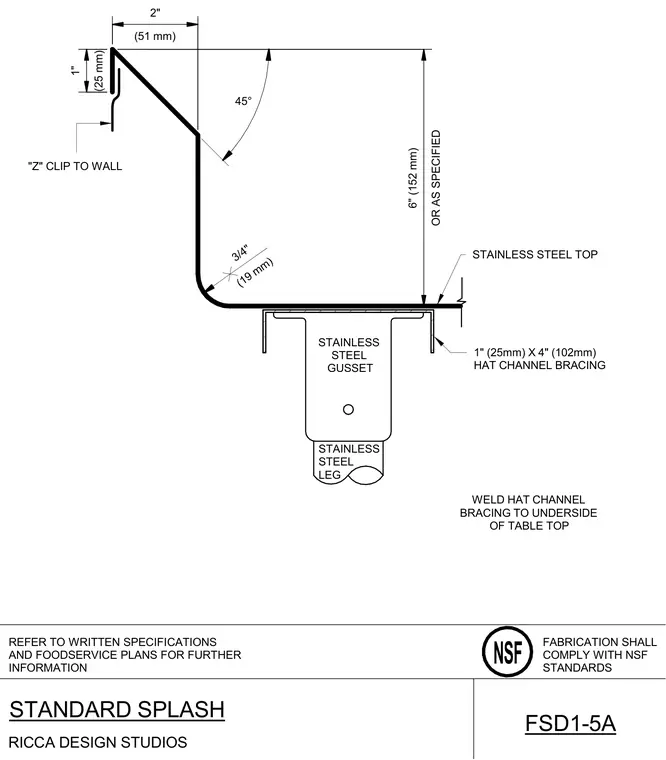

A stainless steel top features an integrated standard splash with a forty-five degree angle measuring six inches high or as specified, secured to the wall via a Z clip. A one-inch by four-inch hat channel bracing is welded to the underside of the table top. A stainless steel gusset connects the tabletop assembly to a stainless steel leg. Fabrication complies with National Sanitation Foundation standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STANDARD SPLASH FSD1-5A 1" (25mm) X 4" (102mm) HAT CHANNEL BRACING "Z" CLIP TO WALL STAINLESS STEEL TOP STAINLESS STEEL GUSSET STAINLESS STEEL LEG WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP (51 mm) 2" (25 mm) 1" OR AS SPECIFIED 6" (152 mm) 45° (19 mm) 3/4"
