Curtain Track Wall Bracket and Drapery Assembly

Materials

Timber / Wood

Elements

Walls Ceilings Reinforcing

Connections

Bolted Connection Rebar Splice / Development

About this detail

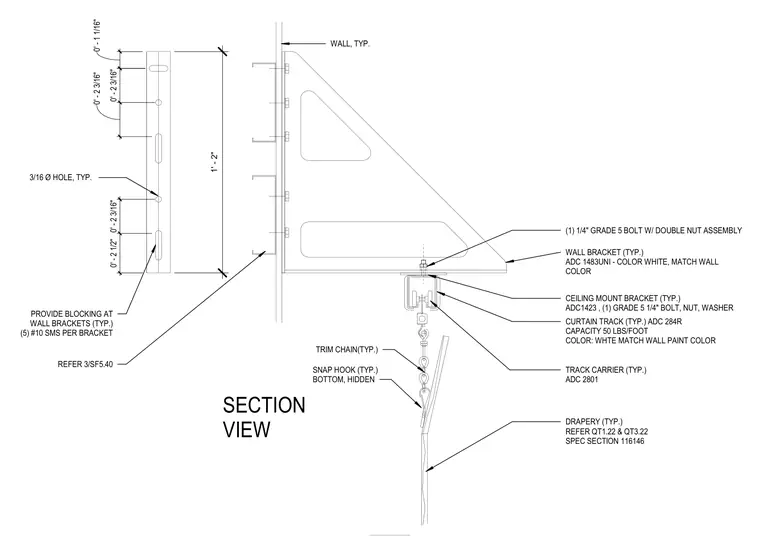

An ADC 1483UNI white-painted wall bracket mounts directly to a wall over required solid backing using five number 10 sheet metal screws per bracket. An ADC 284R curtain track with a 50 pounds per foot capacity connects to the underside of the wall bracket via a ceiling mount bracket ADC 1423 secured with one quarter-inch Grade 5 bolt, nut, and washer assembly, plus an additional one quarter-inch Grade 5 bolt with a double nut assembly. ADC 2801 track carriers ride inside the track, suspending drapery via trim chains and bottom hidden snap hooks.
