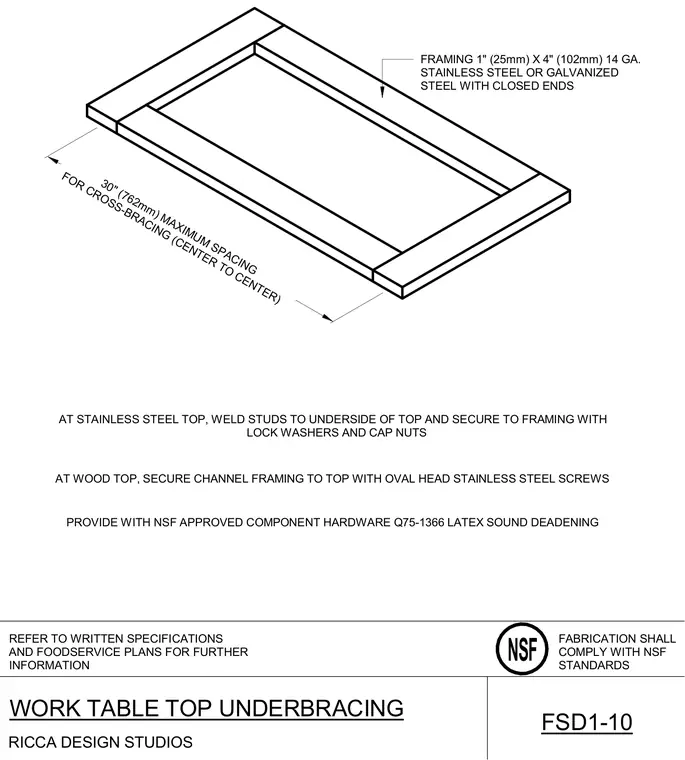

The underbracing assembly consists of 1 inch by 4 inch 14 gauge stainless steel or galvanized steel channel framing with closed ends spaced at a maximum of 30 inches center to center for cross bracing. For stainless steel tops, weld studs are attached to the underside of the top and secured to the framing using lock washers and cap nuts. For wood tops, the channel framing is secured directly to the top using oval head stainless steel screws. The assembly includes NSF approved component hardware and Q75-1366 latex sound deadening.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF FRAMING 1" (25mm) X 4" (102mm) 14 GA. STAINLESS STEEL OR GALVANIZED STEEL WITH CLOSED ENDS AT STAINLESS STEEL TOP, WELD STUDS TO UNDERSIDE OF TOP AND SECURE TO FRAMING WITH LOCK WASHERS AND CAP NUTS AT WOOD TOP, SECURE CHANNEL FRAMING TO TOP WITH OVAL HEAD STAINLESS STEEL SCREWS 30" (762mm) MAXIMUM SPACING FOR CROSS-BRACING (CENTER TO CENTER) PROVIDE WITH NSF APPROVED COMPONENT HARDWARE Q75-1366 LATEX SOUND DEADENING WORK TABLE TOP UNDERBRACING FSD1-10
