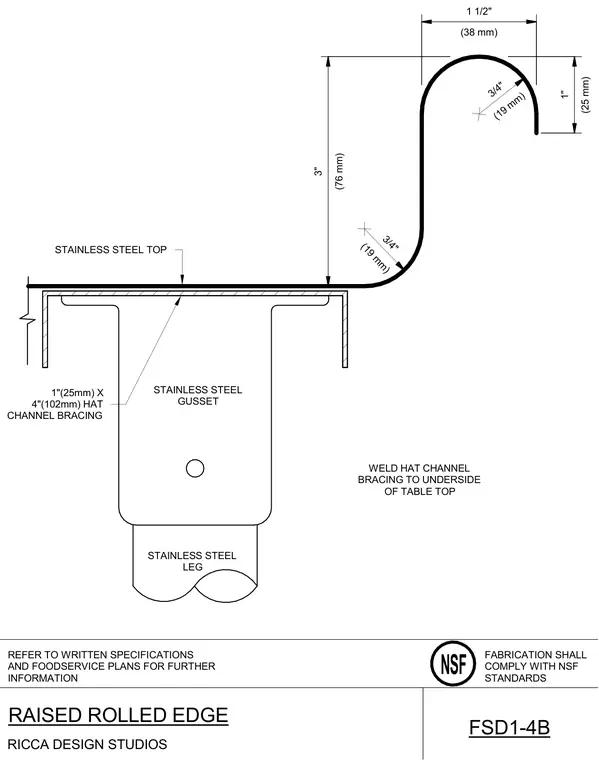

A stainless steel top transitions into a raised rolled edge profile measuring 3 inches in height with a 1-1/2-inch top radius. A 1-inch by 4-inch hat channel bracing is welded to the underside of the tabletop for structural support. A stainless steel gusset connects the tabletop assembly to the stainless steel leg below. Fabrication complies with NSF standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSET STAINLESS STEEL LEG STAINLESS STEEL TOP WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP 1"(25mm) X 4"(102mm) HAT CHANNEL BRACING RAISED ROLLED EDGE FSD1-4B (25 mm) 1" (38 mm) 1 1/2" (76 mm) 3" (19 mm) 3/4" (19 mm) 3/4"
