Soiled Dishtable Sink Compartment

Materials

Elements

About this detail

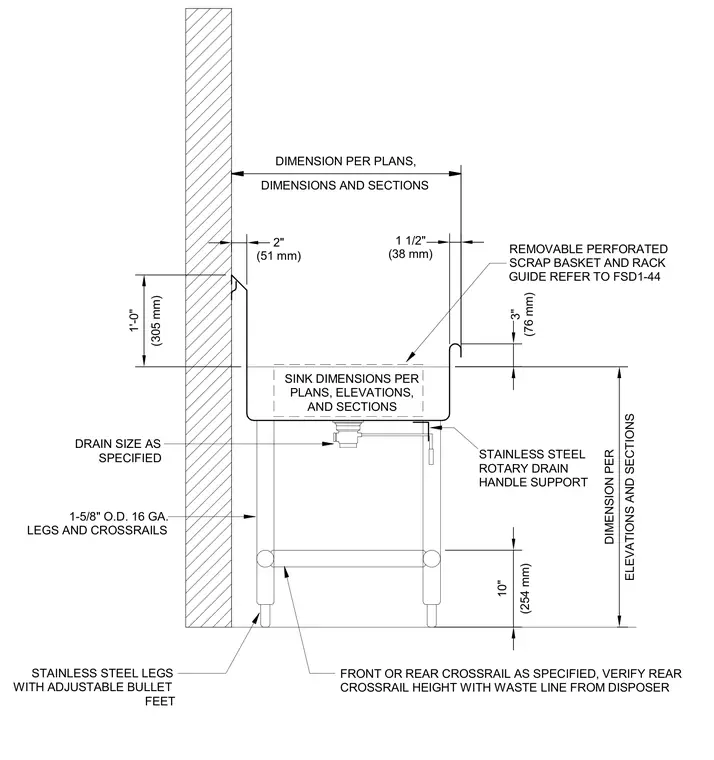

A stainless steel soiled dishtable sink compartment features one-inch-and-five-eighths outer diameter sixteen gauge legs and crossrails with adjustable bullet feet. A removable perforated scrap basket and rack guide is included, alongside a stainless steel rotary drain handle support and a drain sized per specifications. The rear crossrail height requires verification with the waste line from the disposer. Overall dimensions are sized per plans, elevations, and sections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
