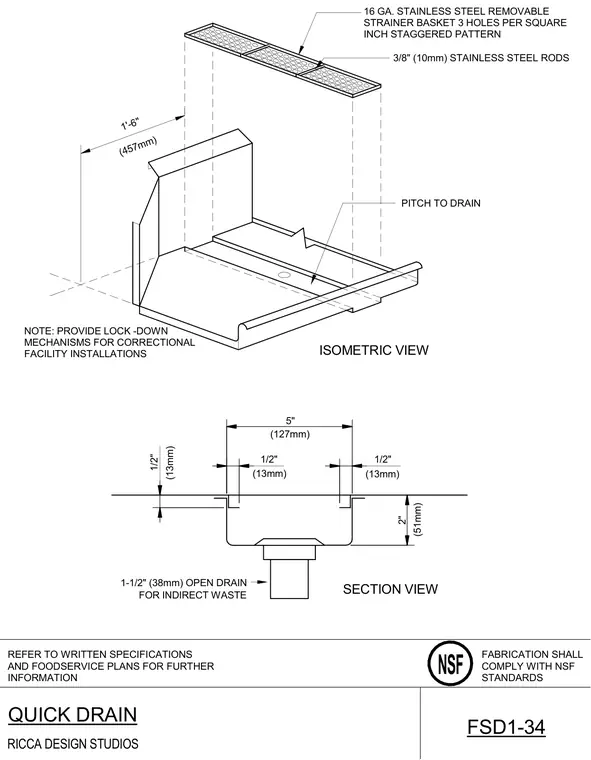

This quick drain assembly features a sixteen gauge stainless steel removable strainer basket with a staggered three-hole per square inch pattern and three-eighths inch stainless steel rods. The trough is fabricated with a two-inch depth, five-inch overall width, and a one-foot six-inch length with a pitched bottom to direct flow toward the drain. A one-and-one-half-inch open drain is provided for indirect waste connections. Correctional facility installations require the addition of lock-down mechanisms.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF . . . . . QUICK DRAIN FSD1-34 1'-6" (457mm) NOTE: PROVIDE LOCK -DOWN MECHANISMS FOR CORRECTIONAL FACILITY INSTALLATIONS PITCH TO DRAIN 2" (51mm) 1/2" (13mm) 1/2" (13mm) 1/2" (13mm) 5" (127mm) 1-1/2" (38mm) OPEN DRAIN FOR INDIRECT WASTE 16 GA. STAINLESS STEEL REMOVABLE STRAINER BASKET 3 HOLES PER SQUARE INCH STAGGERED PATTERN 3/8" (10mm) STAINLESS STEEL RODS ISOMETRIC VIEW SECTION VIEW
