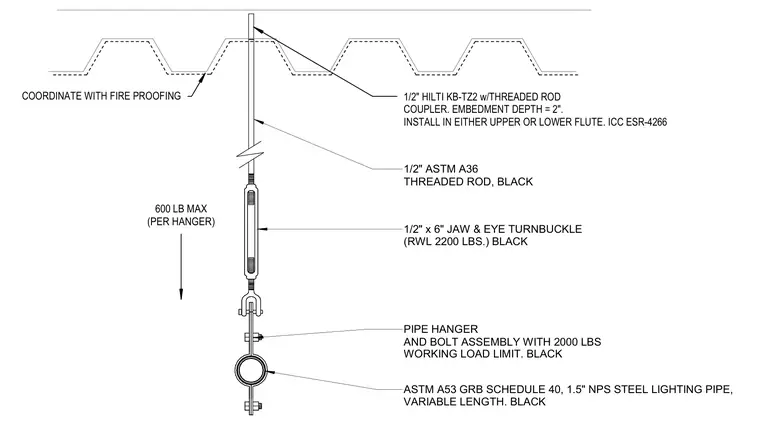

A 1.5-inch nominal pipe size ASTM A53 Grade B Schedule 40 steel lighting pipe of variable length is supported by a pipe hanger and bolt assembly with a two-thousand-pound working load limit. The hanger connects to a black one-half-inch by six-inch jaw and eye turnbuckle with a working load limit of twenty-two hundred pounds. A black one-half-inch ASTM A36 threaded rod extends upward to anchor into the concrete deck. Anchorage is achieved using a one-half-inch Hilsi KB-TZ2 expansion anchor with a threaded rod coupler, installed with a two-inch embedment depth in either the upper or lower flute of the metal deck according to ICC ESR-4266. The assembly is coordinated with structural fireproofing.
PIPE HANGER AND BOLT ASSEMBLY WITH 2000 LBS WORKING LOAD LIMIT. BLACK 1/2" x 6" JAW & EYE TURNBUCKLE (RWL 2200 LBS.) BLACK 1/2" ASTM A36 THREADED ROD, BLACK ASTM A53 GRB SCHEDULE 40, 1.5" NPS STEEL LIGHTING PIPE, VARIABLE LENGTH. BLACK 600 LB MAX (PER HANGER) 1/2" HILTI KB-TZ2 w/THREADED ROD COUPLER. EMBEDMENT DEPTH = 2". INSTALL IN EITHER UPPER OR LOWER FLUTE. ICC ESR-4266 COORDINATE WITH FIRE PROOFING
