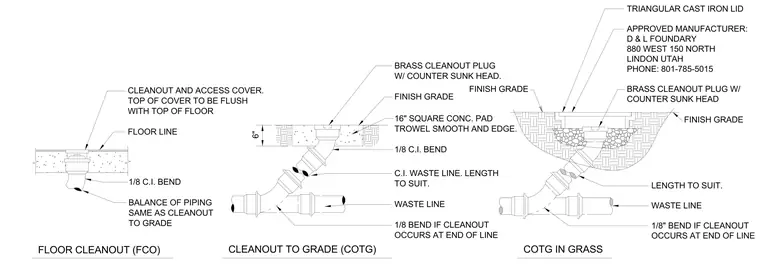

Three standard sanitary plumbing cleanout configurations serve interior floors, concrete pads, and landscaped areas. The floor cleanout features a cleanout and access cover flush with the finish floor line, connected to a cast-iron waste line via an eighth bend. The cleanout to grade assembly includes a brass cleanout plug with a countersunk head set within a sixteen-inch square concrete pad trowel-finished smooth and edged. The exterior cleanout in grass includes a triangular cast-iron lid set flush with the finish grade over a cast-iron waste line and a length-to-suit brass cleanout plug.
FINISH GRADE CLEANOUT TO GRADE (COTG) CLEANOUT AND ACCESS COVER. TOP OF COVER TO BE FLUSH WITH TOP OF FLOOR FLOOR CLEANOUT (FCO) 1/8 C.I. BEND BALANCE OF PIPING SAME AS CLEANOUT TO GRADE FLOOR LINE C.I. WASTE LINE. LENGTH 1/8 BEND IF CLEANOUT OCCURS AT END OF LINE TO SUIT. WASTE LINE BRASS CLEANOUT PLUG W/ COUNTER SUNK HEAD. 16" SQUARE CONC. PAD TROWEL SMOOTH AND EDGE. 1/8 C.I. BEND FINISH GRADE 6" TRIANGULAR CAST IRON LID APPROVED MANUFACTURER: D & L FOUNDARY 880 WEST 150 NORTH LINDON UTAH PHONE: 801-785-5015 BRASS CLEANOUT PLUG W/ COUNTER SUNK HEAD LENGTH TO SUIT. WASTE LINE 1/8" BEND IF CLEANOUT OCCURS AT END OF LINE FINISH GRADE COTG IN GRASS
