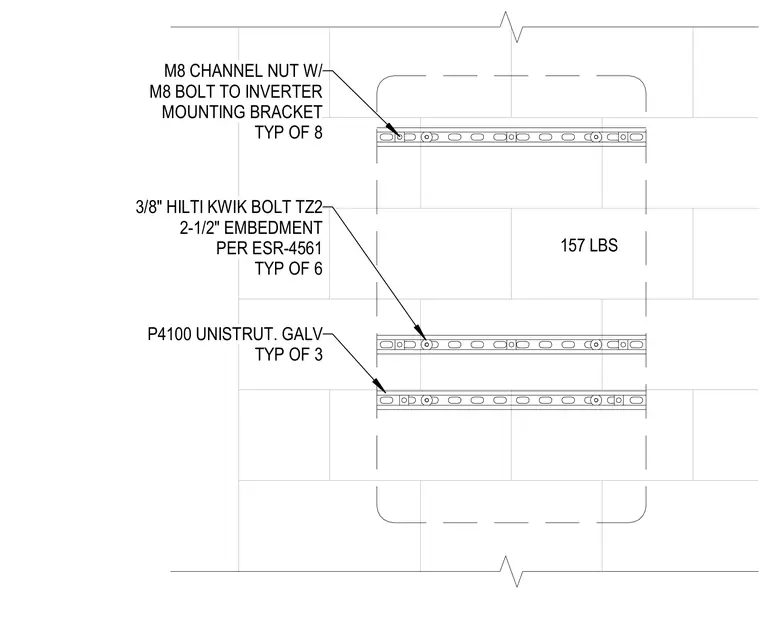

Three galvanized P4100 Unistrut channels are secured to the backing substrate using six 3/8-inch Hilti Kwik Bolt TZ2 concrete expansion anchors set to a 2-1/2-inch embedment depth per ESR-4561. The inverter mounting bracket attaches to the Unistrut channels using eight M8 bolts and M8 channel nuts. The assembly supports a 157-pound equipment load.
157 LBS M8 CHANNEL NUT W/ M8 BOLT TO INVERTER MOUNTING BRACKET TYP OF 8 P4100 UNISTRUT. GALV TYP OF 3 3/8" HILTI KWIK BOLT TZ2 2-1/2" EMBEDMENT PER ESR-4561 TYP OF 6
