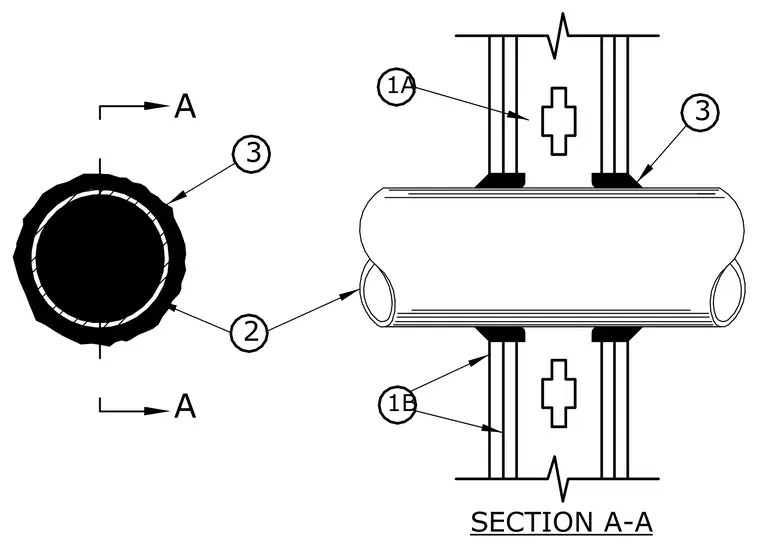

A pipe penetrates through a double-layered wall assembly. The pipe is centered within the wall opening, secured by continuous fillet welds on both sides. Surrounding framing components and partition layers provide support around the penetration point. Section A-A indicates the orthogonal orientation of the assembly.
