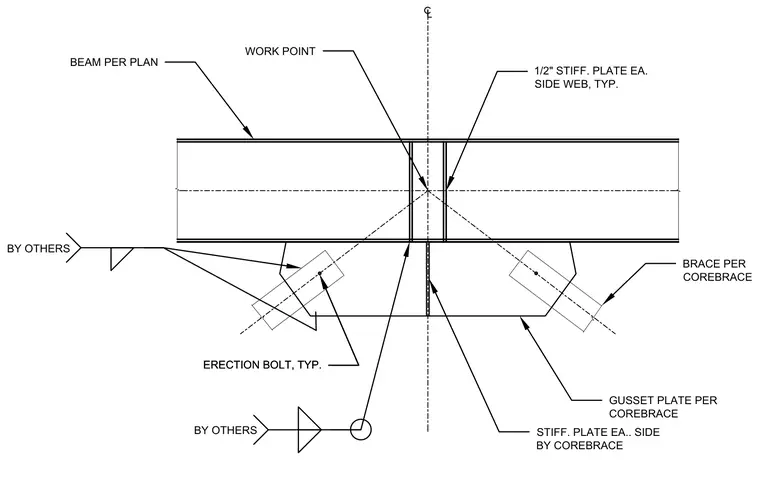

A structural steel beam connects to buckling-restrained braces through a gusset plate welded to the underside of the beam. One-half-inch stiffener plates are welded to each side of the beam web at the work point. The braces and gusset plates are provided per the manufacturer, with erection bolts specified as typical by others.
STIFF. PLATE EA.. SIDE BY COREBRACE 1/2" STIFF. PLATE EA. SIDE WEB, TYP. BRACE PER COREBRACE GUSSET PLATE PER COREBRACE BEAM PER PLAN WORK POINT ERECTION BOLT, TYP. BY OTHERS BY OTHERS ERECTION BOLT, TYP.
