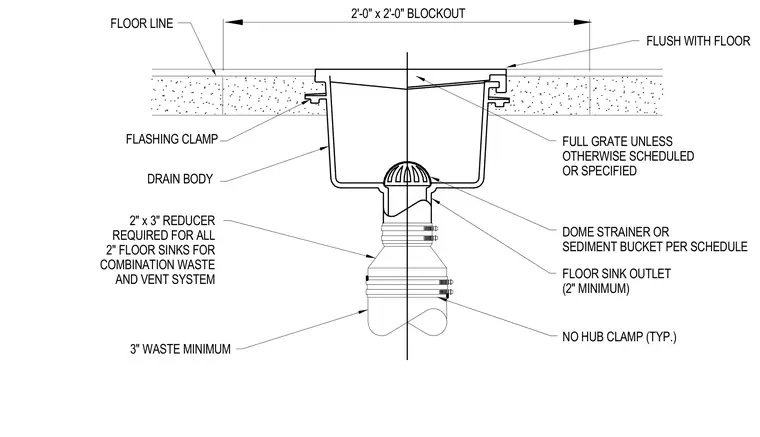

A floor sink assembly is set flush with the finished floor line within a two-foot by two-foot blockout. The drain body features an integrated flashing clamp and connects to a two-inch minimum outlet fitted with a dome strainer or sediment bucket per the schedule. A two-inch by three-inch reducer transitions to a three-inch minimum waste and vent system piping secured with no-hub clamps. A full grate covers the top unless another type is specified.
FLASHING CLAMP FLOOR LINE 3" WASTE MINIMUM AND VENT SYSTEM COMBINATION WASTE 2" FLOOR SINKS FOR REQUIRED FOR ALL 2" x 3" REDUCER DRAIN BODY 2'-0" x 2'-0" BLOCKOUT OR SPECIFIED NO HUB CLAMP (TYP.) FLOOR SINK OUTLET DOME STRAINER OR (2" MINIMUM) FLUSH WITH FLOOR OTHERWISE SCHEDULED FULL GRATE UNLESS SEDIMENT BUCKET PER SCHEDULE
