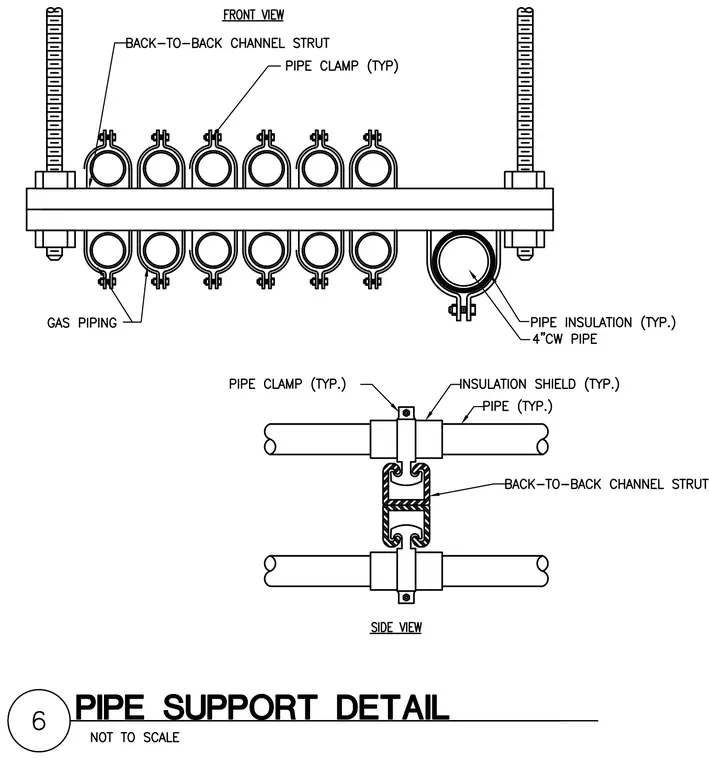

A trapeze pipe support assembly utilizes back-to-back channel struts suspended vertically by threaded rods with heavy-duty hex nuts. Multiple gas piping runs and one four-inch chilled water pipe are secured to the channel framing using typical pipe clamps. The four-inch chilled water pipe includes pipe insulation and an insulation shield at the clamp interface. The side view presents the double-channel strut configuration supporting upper and lower runs of piping.
