A wall cleanout with an access cover connects to a waste line routed through a partition wall above the finished floor slab. The installation requires the wall cleanout to be positioned above the flood rim of the nearest water closet.

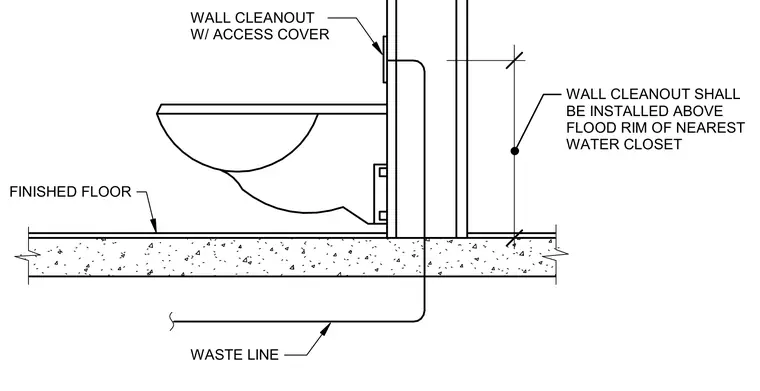

WALL CLEANOUT W/ ACCESS COVER WASTE LINE FINISHED FLOOR WALL CLEANOUT SHALL BE INSTALLED ABOVE FLOOD RIM OF NEAREST WATER CLOSET
