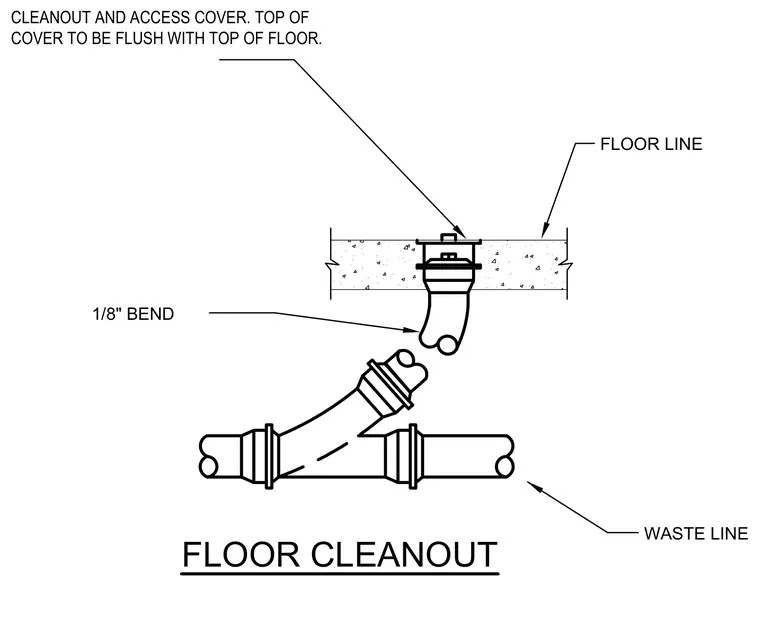

A cleanout and access cover is set flush with the top of the floor line and connects to a waste line through an eighth-inch bend. The piping ties into the main sanitary waste line below the floor slab. The access cover remains accessible at the finished floor level for maintenance.
FLOOR CLEANOUT FLOOR LINE WASTE LINE 1/8" BEND CLEANOUT AND ACCESS COVER. TOP OF COVER TO BE FLUSH WITH TOP OF FLOOR.
