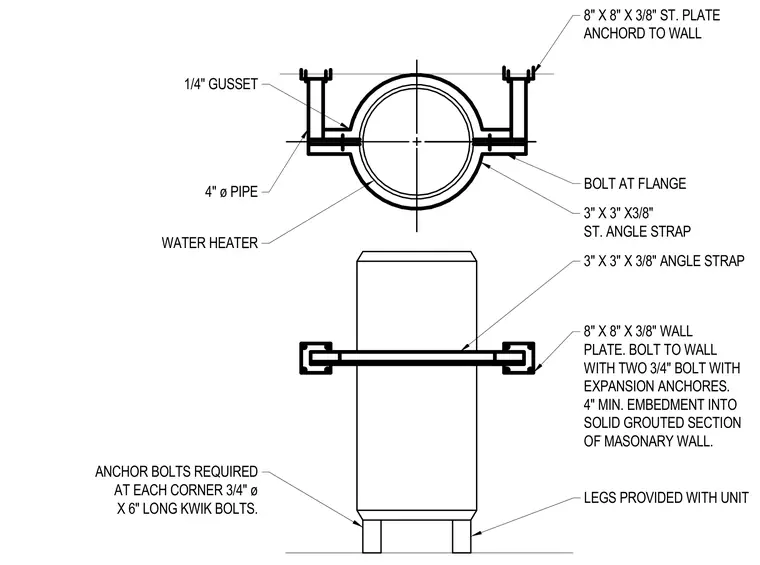

A water heater unit is secured with three-inch by three-inch by three-eighths-inch steel angle straps and four-inch diameter pipe legs provided with the unit. The assembly connects to a solid grouted masonry wall using eight-inch by eight-inch by three-eighths-inch steel wall plates fastened with two three-quarter-inch diameter expansion anchors requiring a minimum of four inches of embedment. Additional anchorage is provided at each corner using three-quarter-inch diameter by six-inch long expansion anchor bolts, with bolted flange connections reinforced by one-quarter-inch gusset plates.
LEGS PROVIDED WITH UNIT 8" X 8" X 3/8" WALL PLATE. BOLT TO WALL WITH TWO 3/4" BOLT WITH EXPANSION ANCHORES. 4" MIN. EMBEDMENT INTO SOLID GROUTED SECTION OF MASONARY WALL. 3" X 3" X 3/8" ANGLE STRAP 3" X 3" X3/8" ST. ANGLE STRAP BOLT AT FLANGE 8" X 8" X 3/8" ST. PLATE ANCHORD TO WALL ANCHOR BOLTS REQUIRED AT EACH CORNER 3/4" ø X 6" LONG KWIK BOLTS. WATER HEATER 4" ø PIPE 1/4" GUSSET
