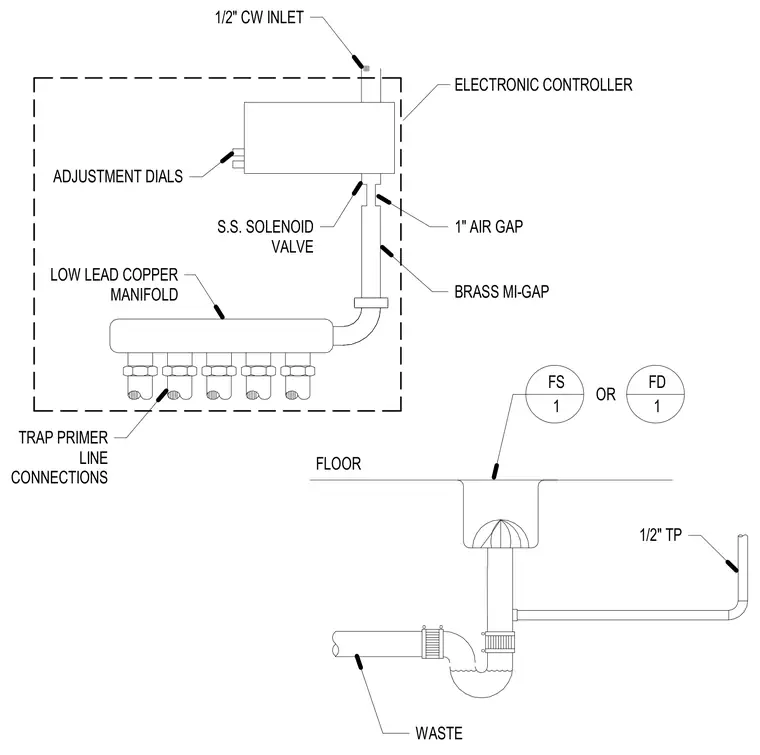

A half-inch cold water inlet feeds into an electronic controller equipped with adjustment dials and a stainless steel solenoid valve. Water flows through a brass MI-gap maintaining a one-inch air gap into a low-lead copper manifold. The manifold distributes water through multiple trap primer line connections to serve a floor sink or floor drain at the finished floor level.
FLOOR OR ELECTRONIC CONTROLLER 1/2" CW INLET ADJUSTMENT DIALS S.S. SOLENOID VALVE 1" AIR GAP BRASS MI-GAP LOW LEAD COPPER MANIFOLD TRAP PRIMER LINE CONNECTIONS 1/2" TP FS 1 FD 1 WASTE
