This fifty-four inch long by twelve-inch wide laundry trough features a seven to eight-inch depth with an interior slope of one-eighth inch per foot toward the drain. The bottom outlet connects via a four-inch no-hub connection to a four-inch P-trap equipped with a one-half-inch primer tap. A one-half-inch trap primer line ties into the trap assembly from a remote primer valve.

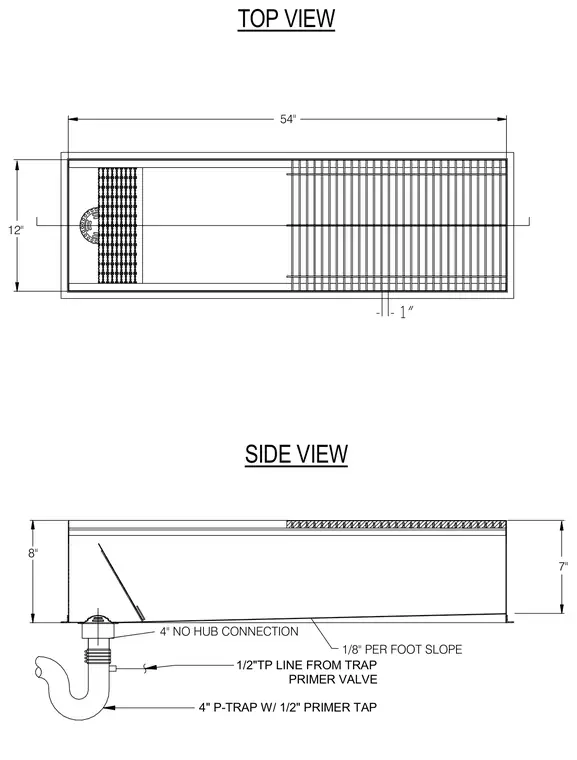

TOP VIEW SIDE VIEW 54" 12" 8" 7" 1/8" PER FOOT SLOPE 4" NO HUB CONNECTION 1/2"TP LINE FROM TRAP 4" P-TRAP W/ 1/2" PRIMER TAP PRIMER VALVE
