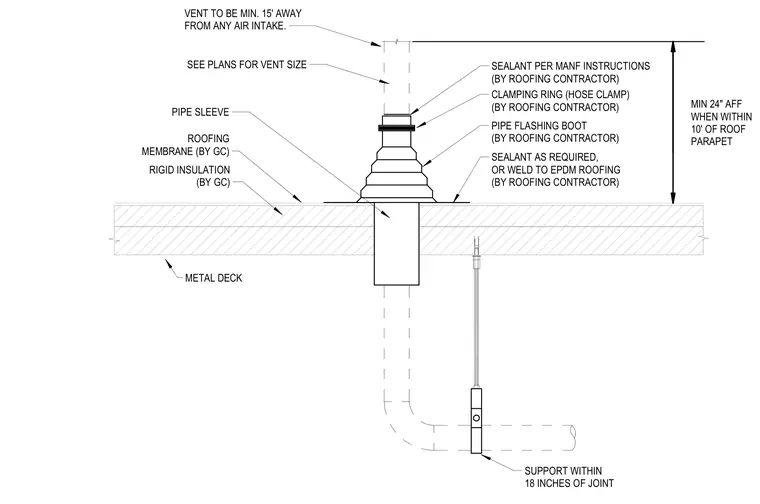

A sanitary vent pipe penetrates a metal deck topped with rigid insulation and a roofing membrane installed by the general contractor. A pipe sleeve houses the vent, surrounded by a pipe flashing boot secured with a clamping ring and sealant. Additional sealant or a weld attaches the flashing to the EPDM roofing membrane per manufacturer instructions by the roofing contractor. The vent pipe requires support within eighteen inches of the joint, a minimum height of twenty-four inches above finished floor when within ten feet of a roof parapet, and must be located at least fifteen feet away from any air intake.
SEE PLANS FOR VENT SIZE ROOFING MEMBRANE (BY GC) RIGID INSULATION (BY GC) CLAMPING RING (HOSE CLAMP) (BY ROOFING CONTRACTOR) PIPE FLASHING BOOT (BY ROOFING CONTRACTOR) SEALANT PER MANF INSTRUCTIONS (BY ROOFING CONTRACTOR) SEALANT AS REQUIRED, OR WELD TO EPDM ROOFING (BY ROOFING CONTRACTOR) METAL DECK PIPE SLEEVE SUPPORT WITHIN 18 INCHES OF JOINT MIN 24" AFF WHEN WITHIN 10' OF ROOF PARAPET VENT TO BE MIN. 15' AWAY FROM ANY AIR INTAKE.
