Plumbing · P-YXM62

Braced Clevis Hanger and Pipe Support Assembly

Materials

Steel

Elements

Bracing Insulation Connections / Plates

Connections

Bracing Connection Bolted Connection

About this detail

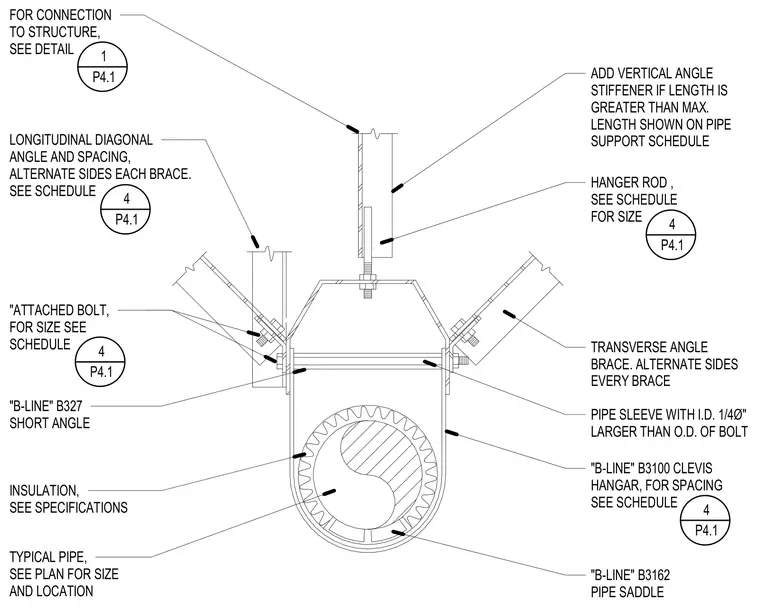

This pipe support assembly consists of a typical insulated pipe resting on a B-Line B3162 pipe saddle inside a B-Line B3100 clevis hanger. The clevis hanger is suspended by a vertical hanger rod sized per schedule, featuring a pipe sleeve with an inside diameter one-quarter inch larger than the outer diameter of the bolt. Transverse angle braces and longitudinal diagonal angle are attached to the hanger assembly using B-Line B327 short angles and bolted connections with spacing and sizes per the pipe support schedule. A vertical angle stiffener is added to the hanger rod when its length exceeds the maximum length shown on the schedule.
