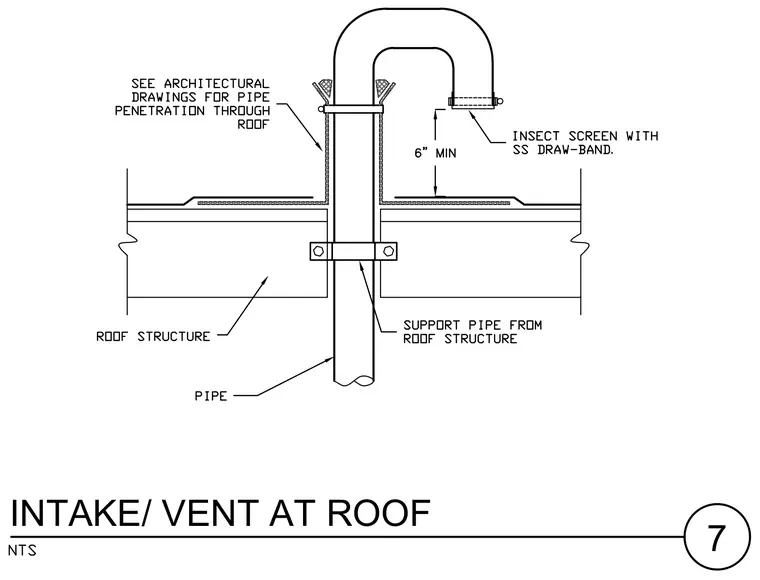

A vertical pipe penetrates the roof structure and is secured with a structural pipe support bracket. The exterior portion extends upward and curves into a gooseneck termination positioned six inches minimum above the roof surface. An insect screen is secured to the open end using a stainless steel draw-band. A sleeve surrounds the pipe at the roof penetration, with architectural drawings referenced for the specific roof penetration assembly.
