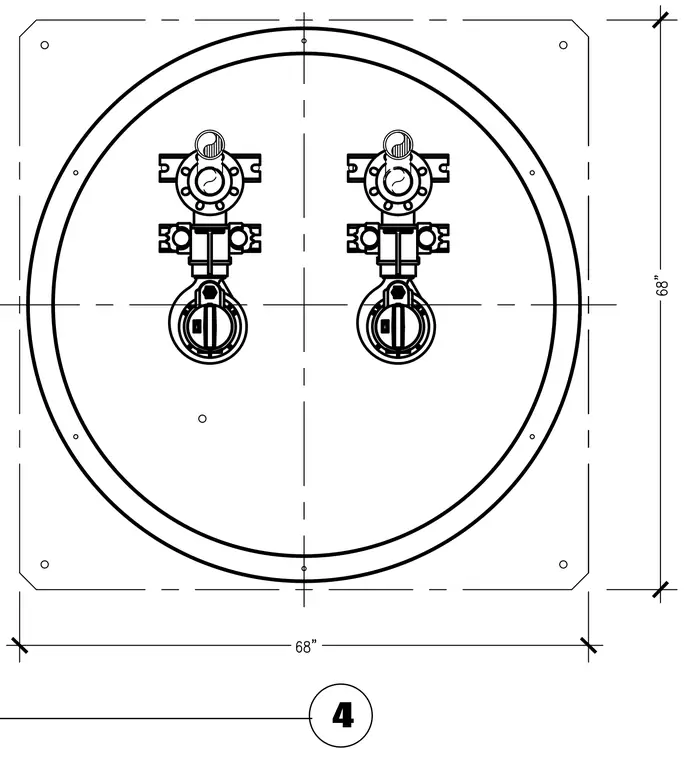

Plan view of a sanitary interceptor cover showing a 68-inch square dimensioned plate with a centered circular access ring and dual internal mechanical valves. The assembly is aligned along perpendicular centerlines with four mounting holes at the square corners. The overall width and height are dimensioned at 68 inches.
