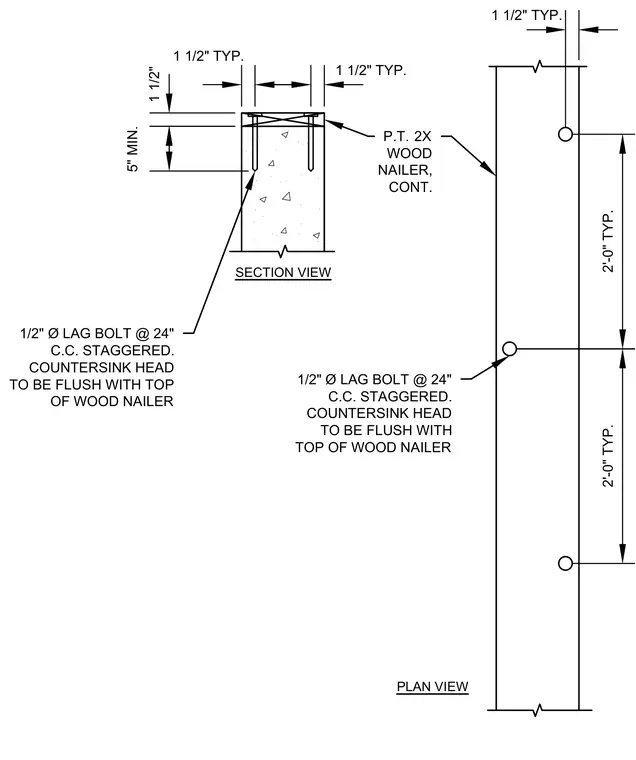

A continuous pressure-treated 2x wood nailer is secured with one-half inch diameter lag bolts spaced at twenty-four inches on center staggered. The bolt heads are countersunk to remain flush with the top of the wood nailer. Edge distances and spacings are detailed in both section and plan views.
1 1/2" TYP. 1 1/2" TYP. 1 1/2" 5" MIN. 1 1/2" TYP. 2'-0" TYP. 2'-0" TYP. P.T. 2X WOOD NAILER, CONT. SECTION VIEW PLAN VIEW 1/2" Ø LAG BOLT @ 24" C.C. STAGGERED. COUNTERSINK HEAD TO BE FLUSH WITH TOP OF WOOD NAILER 1/2" Ø LAG BOLT @ 24" C.C. STAGGERED. COUNTERSINK HEAD TO BE FLUSH WITH TOP OF WOOD NAILER
