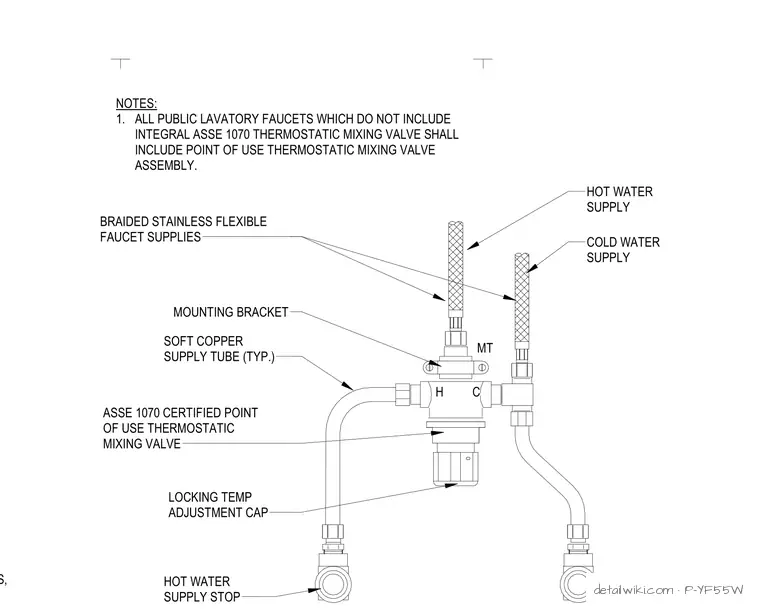

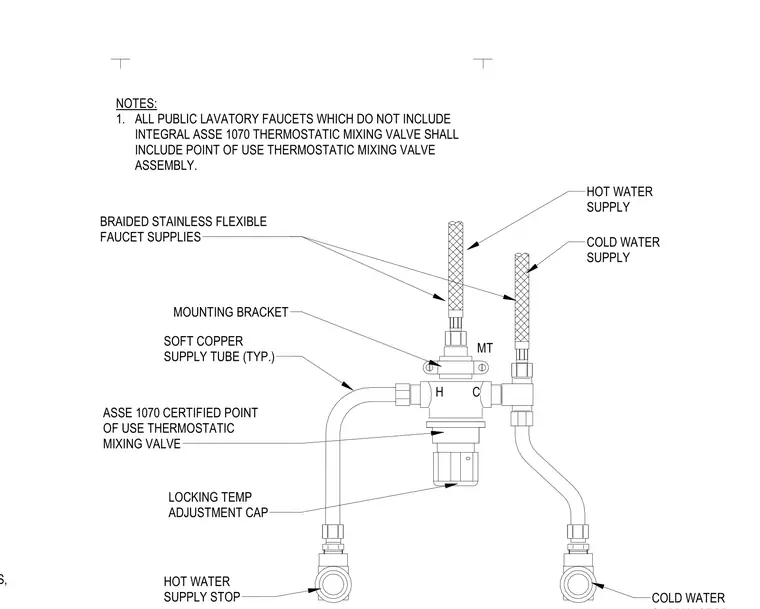

This assembly features an American Society of Sanitary Engineering 1070 certified point of use thermostatic mixing valve mounted via a bracket. Hot and cold water are supplied through braided stainless steel flexible faucet supplies connected to the valve inlets. Soft copper supply tubes connect the valve outlets to the hot and cold water supply stops. The valve includes a locking temperature adjustment cap to maintain consistent output temperatures for public lavatory faucets that lack integral mixing valves.
