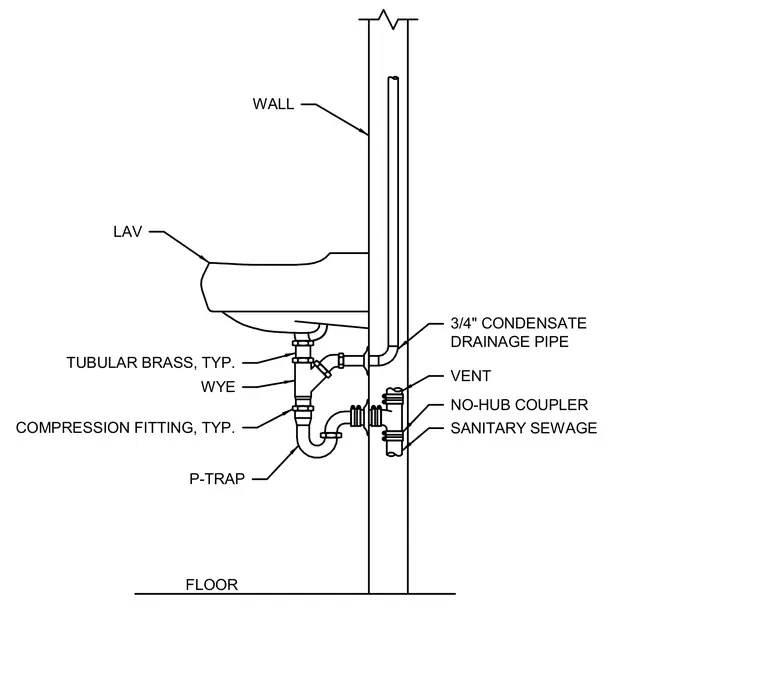

A three-quarter-inch condensate drainage pipe ties into a wye fitting located beneath a lavatory. Typical tubular brass piping connects the lavatory tailpiece through compression fittings to a standard P-trap. The waste line connects to the sanitary sewage stack using a no-hub coupler alongside a building vent line.
LAV FLOOR WALL P-TRAP WYE 3/4" CONDENSATE COMPRESSION FITTING, TYP. DRAINAGE PIPE TUBULAR BRASS, TYP. VENT NO-HUB COUPLER SANITARY SEWAGE
