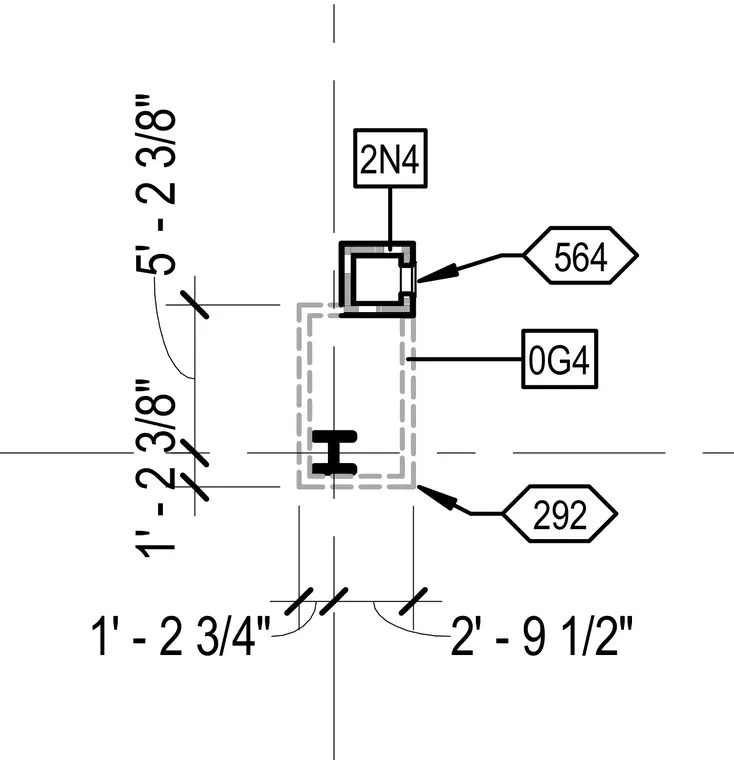

This drawing outlines a structural framework layout with specific horizontal and vertical dimensions. A primary member is positioned on a grid line with precise offsets of 1 foot 2-3/4 inches and 2 feet 9-1/2 inches. Vertical positioning is defined by dimensions of 1 foot 2-3/8 inches and 5 feet 2-3/8 inches between reference points. Reference tags 2N4, 564, 0G4, and 292 coordinate components across the plumbing and structural layout.
