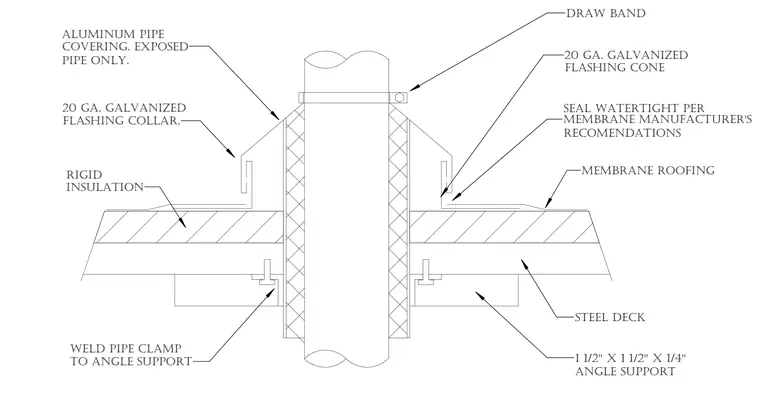

A pipe penetrates through a steel deck and membrane roofing assembly supported by a one and one-half inch by one and one-half inch by one-quarter inch steel angle welded to a pipe clamp. Rigid insulation rests above the steel deck beneath the membrane roofing. A twenty gauge galvanized flashing collar surrounds the insulated pipe, while a twenty gauge galvanized flashing cone is secured at the top by a draw band. Joints are sealed watertight according to the membrane manufacturer recommendations.
MEMBRANE MANUFACTURER'S WELD PIPE CLAMP TO ANGLE SUPPORT COVERING. EXPOSED 20 GA. GALVANIZED FLASHING COLLAR. RIGID INSULATION PIPE ONLY. ALUMINUM PIPE STEEL DECK 1 1/2" X 1 1/2" X 1/4" ANGLE SUPPORT FLASHING CONE 20 GA. GALVANIZED SEAL WATERTIGHT PER RECOMENDATIONS MEMBRANE ROOFING DRAW BAND
