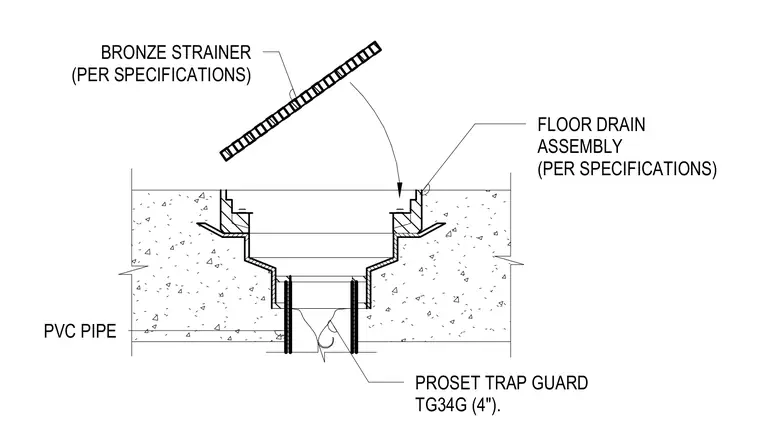

A floor drain assembly per specifications is installed within the concrete floor slab, complete with a bronze strainer per specifications. A Proset trap guard TG34G measuring four inches is fitted inside the outlet. The drain body connects directly to a PVC pipe beneath the slab.
FLOOR DRAIN ASSEMBLY (PER SPECIFICATIONS) BRONZE STRAINER (PER SPECIFICATIONS) PVC PIPE PROSET TRAP GUARD TG34G (4").
