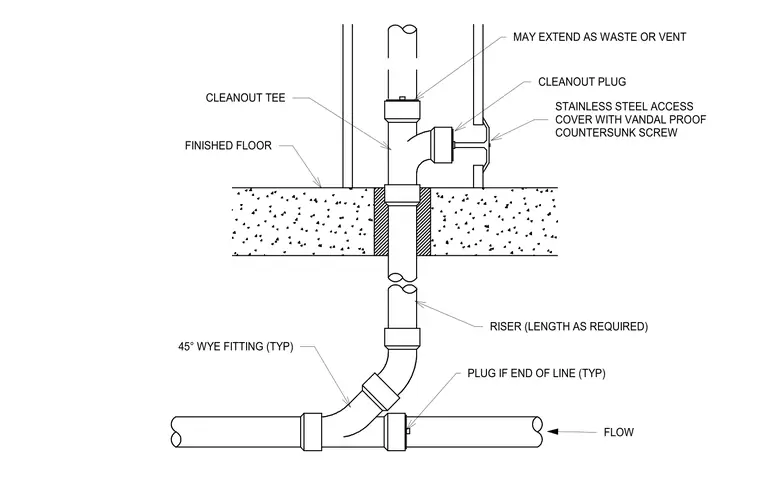

The assembly consists of a cleanout tee installed within a wall cavity, connected to a vertical riser of required length that penetrates the finished floor. A stainless steel access cover with a vandal-proof countersunk screw provides exterior wall access to the cleanout plug. The vertical riser connects to the main horizontal drainage line via a typical forty-five degree wye fitting. A plug is installed at the end of the line where applicable to maintain system integrity.
Text on the drawing
FINISHED FLOOR CLEANOUT TEE MAY EXTEND AS WASTE OR VENT CLEANOUT PLUG STAINLESS STEEL ACCESS COVER WITH VANDAL PROOF COUNTERSUNK SCREW RISER (LENGTH AS REQUIRED) PLUG IF END OF LINE (TYP) 45° WYE FITTING (TYP) FLOW WHERE OVERFLOW DISCHARGE OVERFLOW IS DERECTED INTO NO SCALE 4 22 13 00 WALL CLEANOUT
