The yard cleanout assembly connects vertical solid pipe and fittings to a horizontal perforated drain pipe below finished grade. A frost sleeve surrounds the upper cleanout pipe, which terminates at a cleanout fitting specified in the schedule. A two-foot-six-inch by two-foot-six-inch by six-inch thick concrete pad surrounds the cleanout at the surface, though the pad is omitted in paved areas. All bends and fittings use solid pipe matching the main pipe material. Sanitary and storm sand cleanouts follow a similar configuration, while finished floor cleanouts tie into the drainage system per manufacturer schedules.

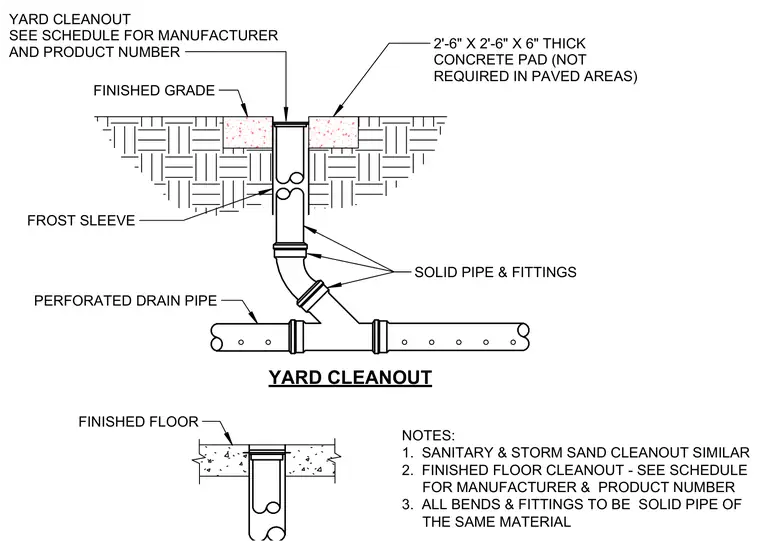

FROST SLEEVE SOLID PIPE & FITTINGS YARD CLEANOUT 2'-6" X 2'-6" X 6" THICK CONCRETE PAD (NOT REQUIRED IN PAVED AREAS) NOTES: 1. SANITARY & STORM SAND CLEANOUT SIMILAR 2. FINISHED FLOOR CLEANOUT - SEE SCHEDULE FOR MANUFACTURER & PRODUCT NUMBER 3. ALL BENDS & FITTINGS TO BE SOLID PIPE OF THE SAME MATERIAL PERFORATED DRAIN PIPE FINISHED FLOOR YARD CLEANOUT SEE SCHEDULE FOR MANUFACTURER AND PRODUCT NUMBER FINISHED GRADE
