This recessed box-type hose bibb assembly features a twenty gauge stainless steel box with a continuous stainless steel face hinge and a hinged locking cover. An integral vacuum breaker assembly connects to the internal valve, operated by a removable key with a three-quarter inch hose connection. The inlet accepts a one-half inch female National Pipe Thread or three-quarter inch male National Pipe Thread supply. An adjustable wall clamp secures the assembly within the wall thickness, and the box finish is verified with the architect.

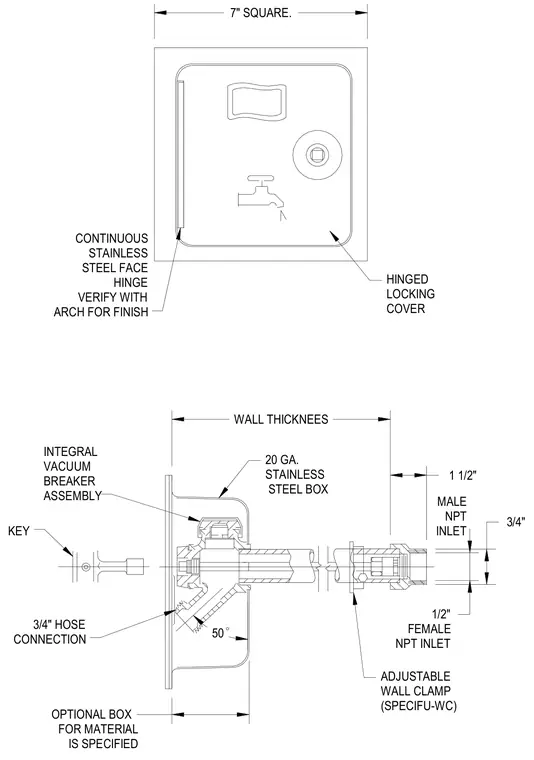

50 HINGED LOCKING COVER CONTINUOUS STAINLESS STEEL FACE HINGE VERIFY WITH ARCH FOR FINISH 7" SQUARE. KEY INTEGRAL VACUUM BREAKER ASSEMBLY WALL THICKNEES 3/4" HOSE CONNECTION 1 1/2" 1/2" FEMALE NPT INLET 3/4" MALE NPT INLET 20 GA. STAINLESS STEEL BOX ADJUSTABLE WALL CLAMP (SPECIFU-WC) OPTIONAL BOX FOR MATERIAL IS SPECIFIED
