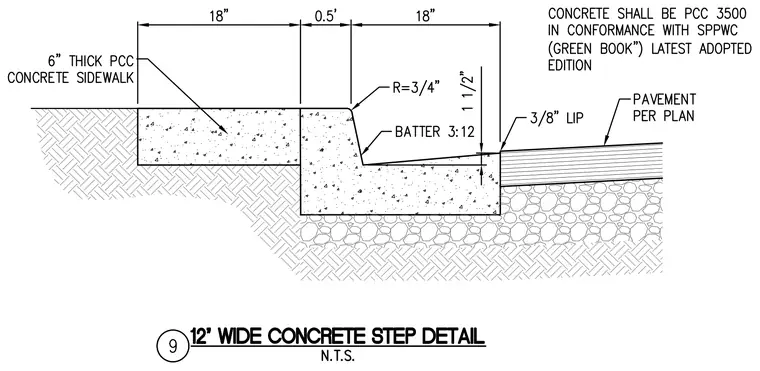

A six-inch thick PCC concrete sidewalk transitions down a 12-inch wide concrete step with a 3:12 batter and a 3/4-inch radius corner. The step sits on compacted subgrade and meets a pavement section per plan with a 3/8-inch lip. Concrete shall be PCC 3500 in conformance with SPPWC Green Book latest adopted edition.
