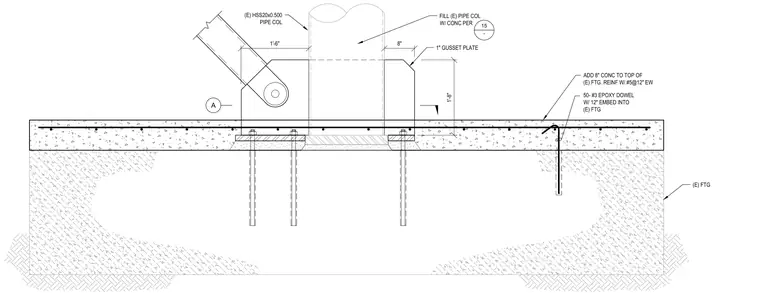

An existing HSS hollow structural section pipe column bears on a base plate atop an existing concrete footing. An added eight-inch concrete topping layer reinforced with number five bars at twelve inches each way ties into the existing footing using fifty number three epoxy dowels with twelve-inch embeds. A one-inch gusset plate connects diagonal bracing to the assembly. The existing pipe column is filled with concrete.
A 1'-8" 8" 1'-6" 1" GUSSET PLATE 50- #3 EPOXY DOWEL W/ 12" EMBED INTO (E) FTG ADD 8" CONC TO TOP OF (E) FTG. REINF W/ #5@12" EW (E) FTG FILL (E) PIPE COL W/ CONC PER - 15 (E) HSS20x0.500 PIPE COL
