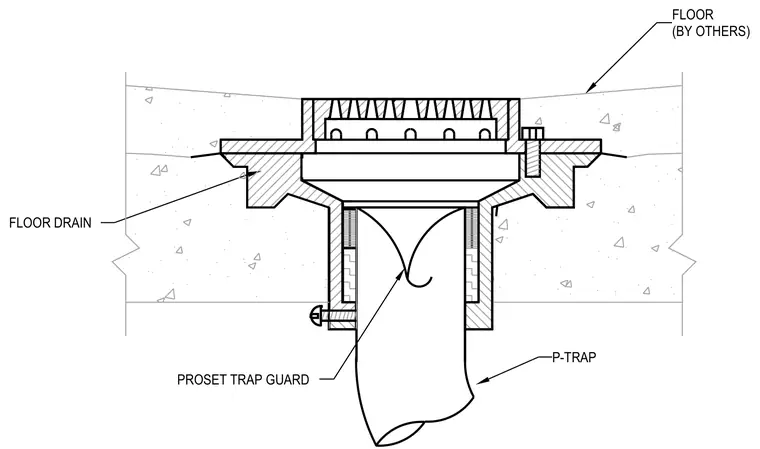

A floor drain assembly is installed within a floor slab constructed by others, connecting to a P-trap below. A ProSet trap guard is inserted into the drain body to prevent sewer gas emissions. The surrounding floor slopes toward the drain for proper water collection.
