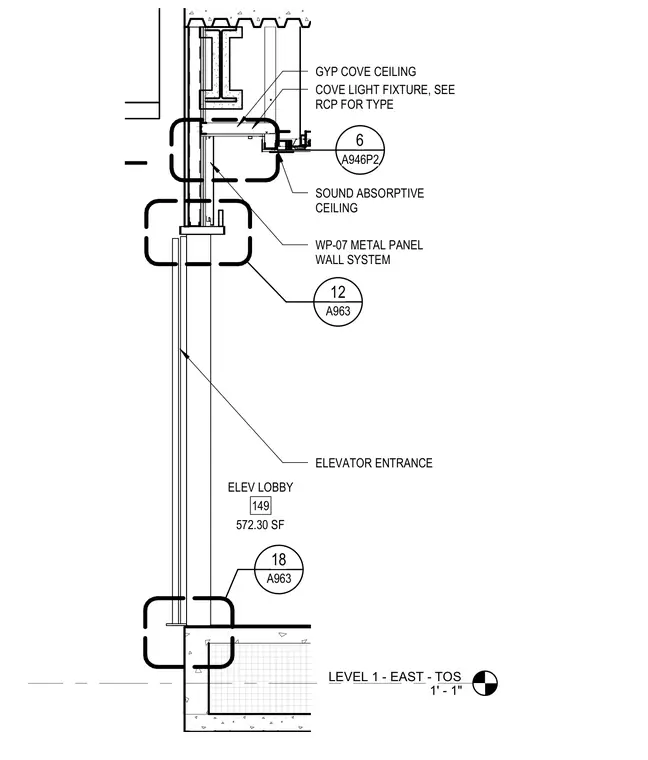

A vertical wall section shows an elevator entrance elevation extending up to a gypsum cove ceiling and sound absorptive ceiling assembly at Level 1. A WP-07 metal panel wall system forms the exterior cladding interface. The gypsum cove ceiling integrates a cove light fixture sized per the reflected ceiling plan. Multiple detail reference callouts link the assembly to sheets A946P2 and A963 for adjacent conditions.
LEVEL 1 - EAST - TOS 1' - 1" 6 A946P2 SOUND ABSORPTIVE CEILING GYP COVE CEILING COVE LIGHT FIXTURE, SEE RCP FOR TYPE WP-07 METAL PANEL WALL SYSTEM ELEVATOR ENTRANCE 12 A963 18 A963 ELEV LOBBY 149 572.30 SF
