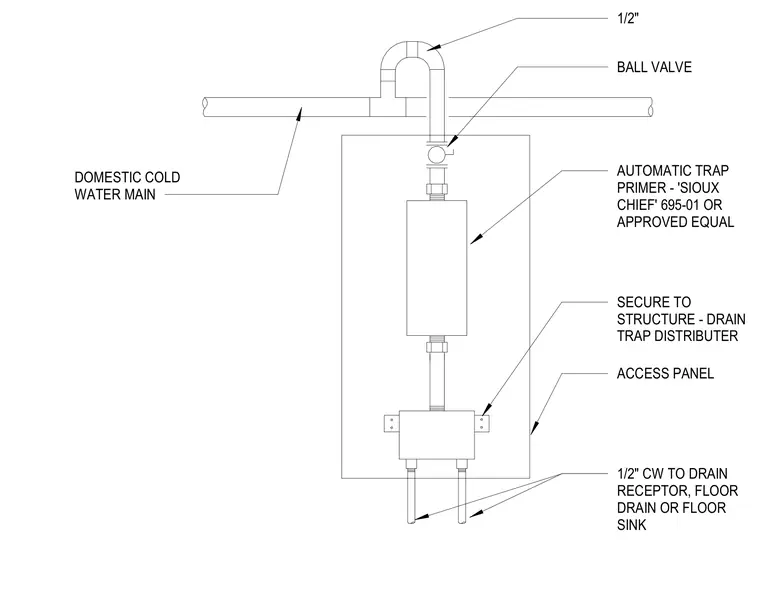

An automatic trap primer connects to a domestic cold water main via a half-inch pipe equipped with a ball valve. The assembly incorporates a Sioux Chief 695-01 automatic trap primer or approved equal, feeding down into a drain trap distributor secured to the building structure. Outlet lines route half-inch cold water to a drain receptor, floor drain, or floor sink. The entire inline assembly is housed behind an access panel.
ACCESS PANEL 1/2" AUTOMATIC TRAP PRIMER - 'SIOUX CHIEF' 695-01 OR APPROVED EQUAL SECURE TO STRUCTURE - DRAIN TRAP DISTRIBUTER BALL VALVE 1/2" CW TO DRAIN RECEPTOR, FLOOR DRAIN OR FLOOR SINK DOMESTIC COLD WATER MAIN
