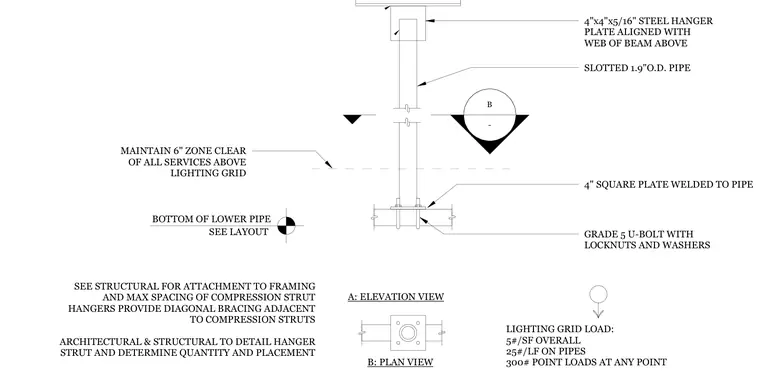

A four-inch by four-inch by five-sixteenths steel hanger plate aligns with the web of the beam above and supports a slotted one-point-nine-inch outside diameter pipe compression strut. A four-inch square plate welds to the pipe at the lower end and connects to the grid using a Grade 5 U-bolt with locknuts and washers. A six-inch zone is maintained clear of all services above the lighting grid.
- B MAINTAIN 6" ZONE CLEAR OF ALL SERVICES ABOVE LIGHTING GRID SEE STRUCTURAL FOR ATTACHMENT TO FRAMING AND MAX SPACING OF COMPRESSION STRUT HANGERS PROVIDE DIAGONAL BRACING ADJACENT TO COMPRESSION STRUTS ARCHITECTURAL & STRUCTURAL TO DETAIL HANGER STRUT AND DETERMINE QUANTITY AND PLACEMENT A: ELEVATION VIEW B: PLAN VIEW 4"x4"x5/16" STEEL HANGER PLATE ALIGNED WITH WEB OF BEAM ABOVE 4" SQUARE PLATE WELDED TO PIPE GRADE 5 U-BOLT WITH LOCKNUTS AND WASHERS LIGHTING GRID LOAD: 5#/SF OVERALL 25#/LF ON PIPES 300# POINT LOADS AT ANY POINT SLOTTED 1.9"O.D. PIPE BOTTOM OF LOWER PIPE SEE LAYOUT
