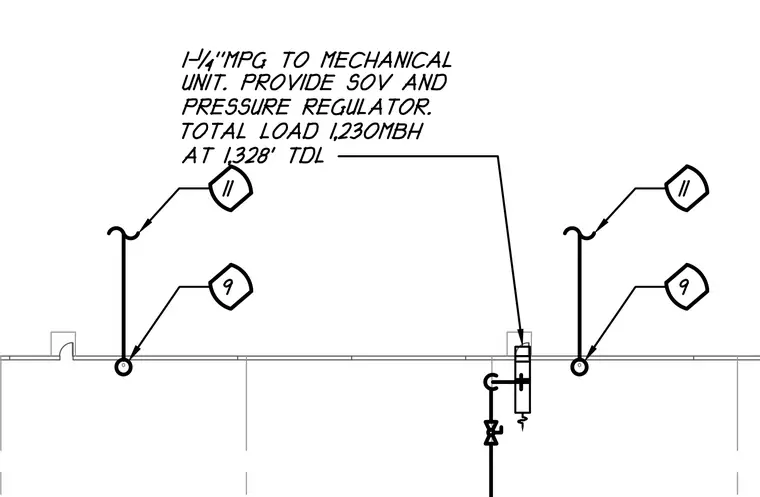

A 1-1/4 inch medium pressure gas piping run connects to the mechanical unit with an included shut-off valve and pressure regulator. The total connected load is 1,230 MBH at an elevation of 1,328 feet total design level. Hanger details and supports are indexed with reference tags throughout the run.
