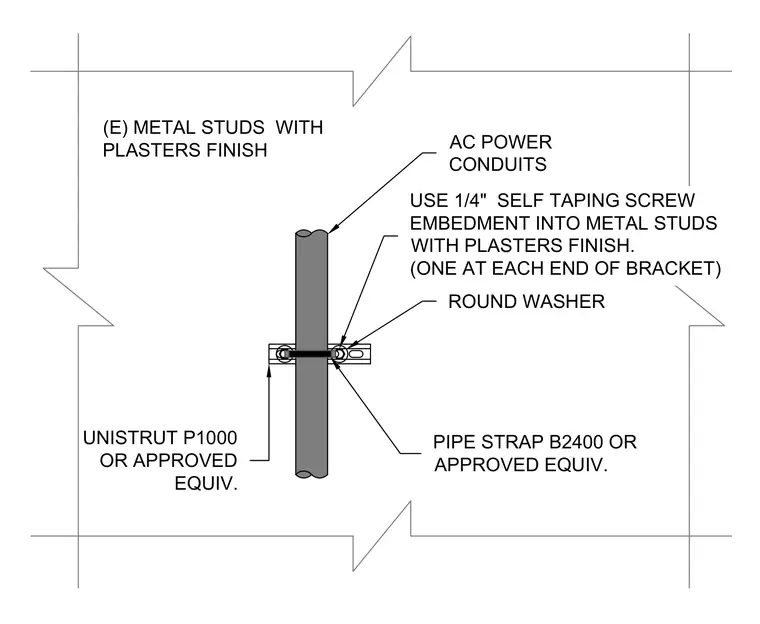

AC power conduits are supported against existing metal studs with plaster finish using a Unistrut P1000 channel or approved equivalent. A pipe strap such as B2400 or approved equivalent clamps the conduit against the channel with round washers placed under the fasteners. One 1/4-inch self-taping screw is embedded into the metal studs at each end of the bracket.
PIPE STRAP B2400 OR APPROVED EQUIV. ROUND WASHER UNISTRUT P1000 OR APPROVED EQUIV. AC POWER CONDUITS (E) METAL STUDS WITH PLASTERS FINISH USE 1/4" SELF TAPING SCREW EMBEDMENT INTO METAL STUDS WITH PLASTERS FINISH. (ONE AT EACH END OF BRACKET) io
