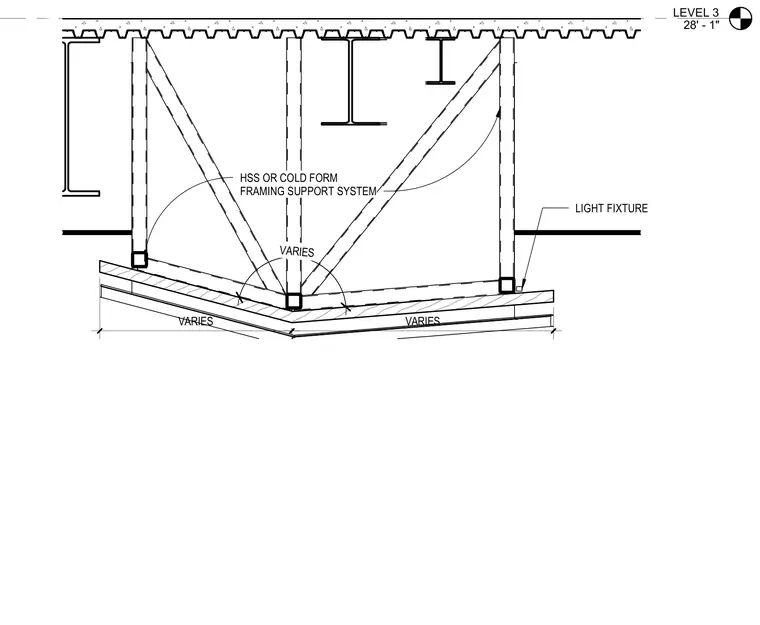

A hollow structural section or cold-formed framing support system suspends the interior ceiling assembly from the overhead structural deck and steel beams. Vertical and diagonal hangers connect the ceiling grid to the overhead structure with variable spacing. Light fixtures integrate directly into the suspended ceiling plane.
LEVEL 3 28' - 1" HSS OR COLD FORM FRAMING SUPPORT SYSTEM VARIES VARIES VARIES LIGHT FIXTURE
