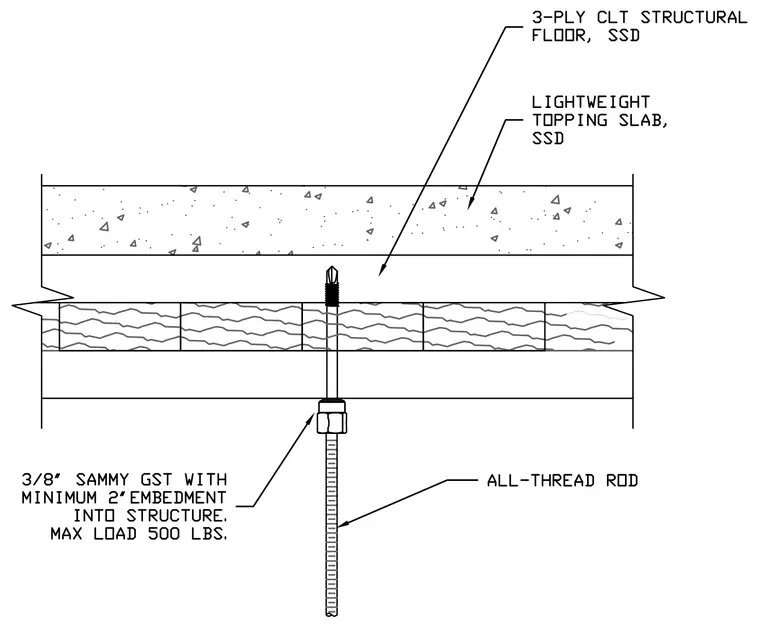

An all-thread rod suspends from a three-ply cross-laminated timber structural floor topped with a lightweight concrete slab. A three-eighths-inch Sammy GST fastener with a minimum two-inch embedment anchors into the wood structure to secure the upper attachment. The assembly is rated for a maximum load of five hundred pounds.
