Plumbing · P-XCDEP

Domestic Water Valve In Yard Box

Materials

Concrete Timber / Wood Glass / Glazing Membrane / Roofing

About this detail

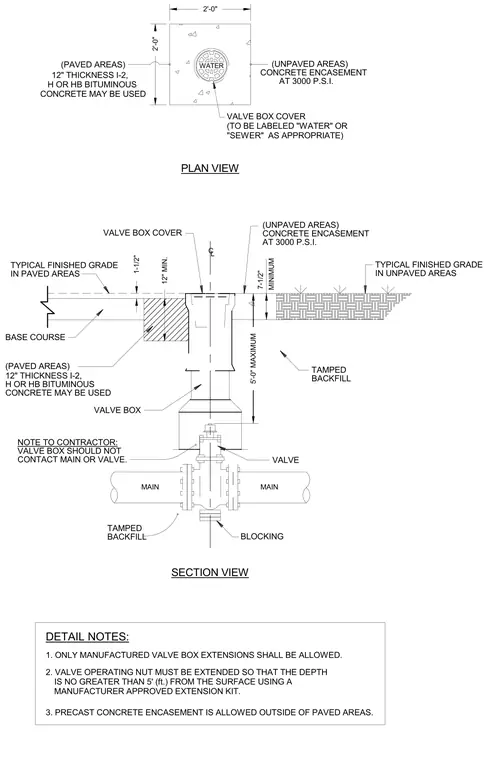

The domestic water valve assembly consists of a water main connected to a valve with a surrounding valve box and cover, set within either paved or unpaved grade conditions. The valve box is installed with a maximum depth of five feet from the surface and must not contact the main or valve. In paved areas, the assembly includes a base course and a twelve-inch thickness of I-2, H, or HB bituminous concrete, while unpaved areas incorporate concrete encasement at 3000 P.S.I. and tamped backfill. Blocking is placed beneath the main, and manufactured valve box extensions are used when required to maintain the operating nut depth.
