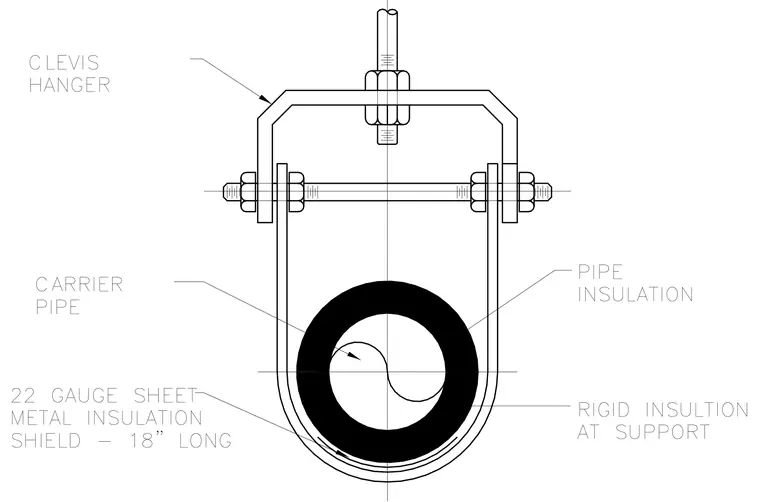

The carrier pipe is wrapped in pipe insulation and supported by an adjustable clevis hanger suspended from a threaded rod. Rigid insulation is installed at the support point beneath the pipe to prevent crushing of the thermal insulation. An eighteen-inch long twenty-two gauge sheet metal insulation shield cradles the bottom of the insulated pipe within the clevis to distribute the load and protect the insulation jacket.
PIPE INSULATION RIGID INSULTION AT SUPPORT 22 GAUGE SHEET METAL INSULATION SHIELD - 18" LONG CLEVIS HANGER CARRIER PIPE
