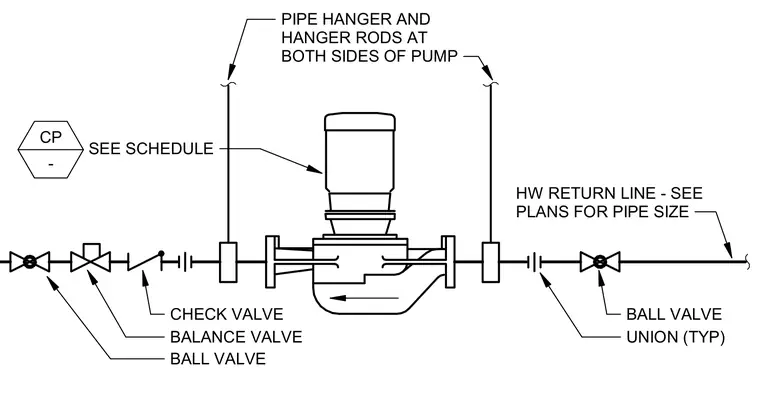

The hot water return line connects to the inline circulation pump with pipe sizing per the drawings. Pipe hangers and hanger rods are positioned at both sides of the pump to support the piping weight. The assembly incorporates typical unions, ball valves for isolation, a balance valve, and a check valve to control flow direction. The pump is specified per the equipment schedule.
PIPE HANGER AND HANGER RODS AT BOTH SIDES OF PUMP SEE SCHEDULE HW RETURN LINE - SEE PLANS FOR PIPE SIZE CHECK VALVE BALANCE VALVE BALL VALVE UNION (TYP) BALL VALVE - CP
