Plumbing · P-X68M5

Cleanout Detail

Materials

Elements

Walls Stairs Floors / Slabs Connections / Plates

About this detail

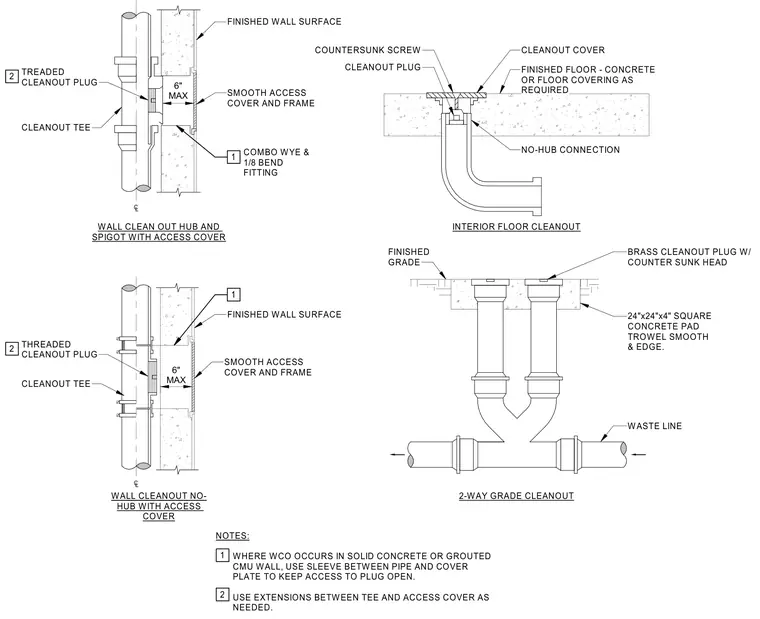

These plumbing cleanout details illustrate wall cleanouts with hub and spigot or no-hub connections, an interior floor cleanout set flush with the finished floor slab, and a two-way grade cleanout set within a square concrete pad. The wall cleanouts feature a cleanout tee, threaded cleanout plug, combo wye and one-eighth bend fitting, and a smooth access cover and frame set into the finished wall surface. The interior floor cleanout uses a no-hub connection and a cleanout cover secured with a countersunk screw. The grade cleanout incorporates a waste line, a brass cleanout plug with a countersunk head, and a twenty-four by twenty-four by four inch square concrete pad that is trowelled smooth and edged. Where wall cleanouts occur in solid concrete or grouted concrete masonry unit walls, a sleeve is placed between the pipe and cover plate to maintain access to the plug. Extensions are used between the tee and access cover as needed.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
