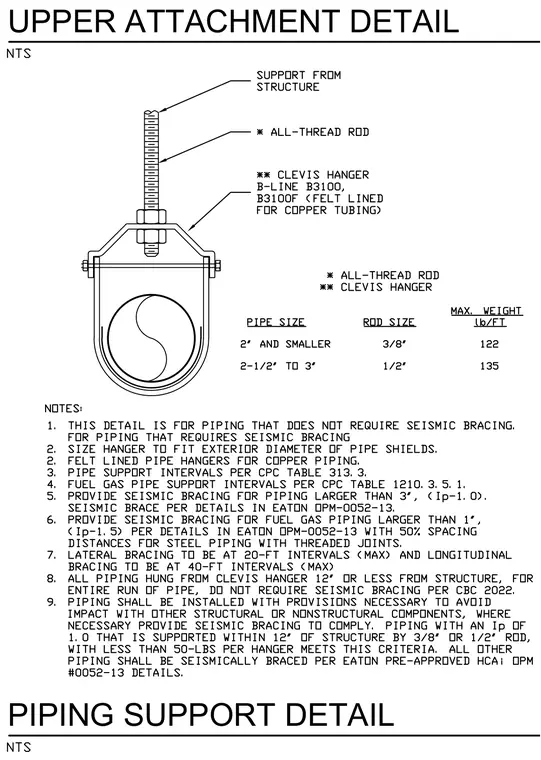

An all-thread rod suspends a clevis hanger from the building structure above. The clevis hanger secures piping, with felt-lined options specified for copper tubing. A companion schedule correlates pipe sizes from two inches and smaller up to three inches with corresponding rod sizes and maximum weights per foot. General notes outline seismic bracing requirements, hanger sizing, support intervals per the California Plumbing Code, and spacing limits for lateral and longitudinal bracing.
