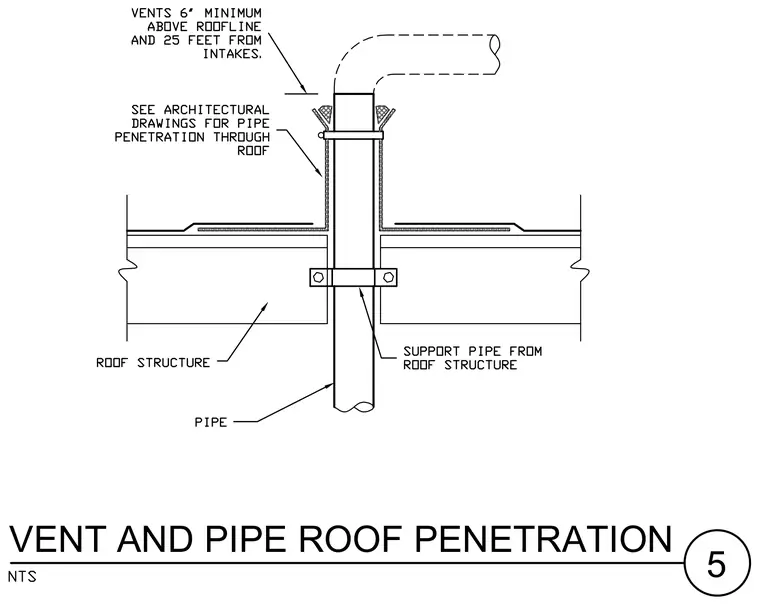

A vertical pipe penetrates the roof structure with a protective flashing sleeve and counterflashing assembly. The pipe is secured below the roof deck by a support clamp anchored directly to the roof structure. Vents must extend a minimum of six inches above the roofline and twenty-five feet from air intakes. Architectural drawings should be referenced for specific pipe penetration requirements through the roof assembly.
