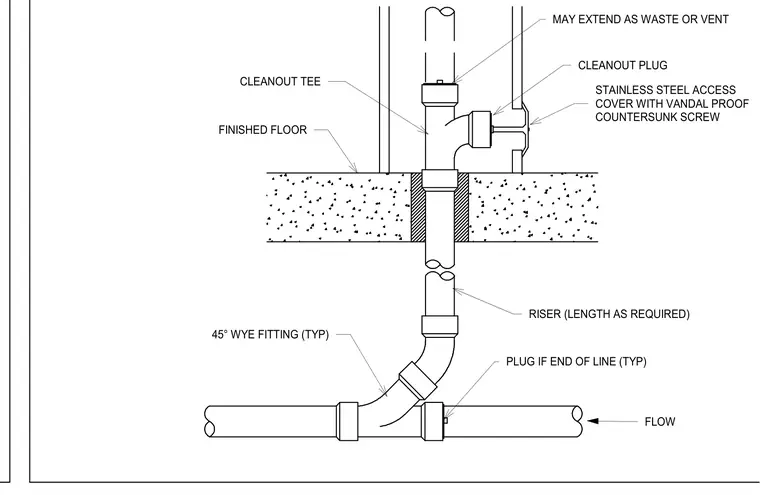

A finished floor cleanout tee connects to a riser of variable length, extending upward through the floor slab with a cleanout plug. A stainless steel access cover with vandal-proof countersunk screws finishes the wall or floor face. Below the slab, a 45-degree wye fitting ties into the waste line featuring a plug at the end of the line.
FINISHED FLOOR CLEANOUT TEE MAY EXTEND AS WASTE OR VENT CLEANOUT PLUG STAINLESS STEEL ACCESS COVER WITH VANDAL PROOF COUNTERSUNK SCREW RISER (LENGTH AS REQUIRED) PLUG IF END OF LINE (TYP) 45° WYE FITTING (TYP) FLOW
