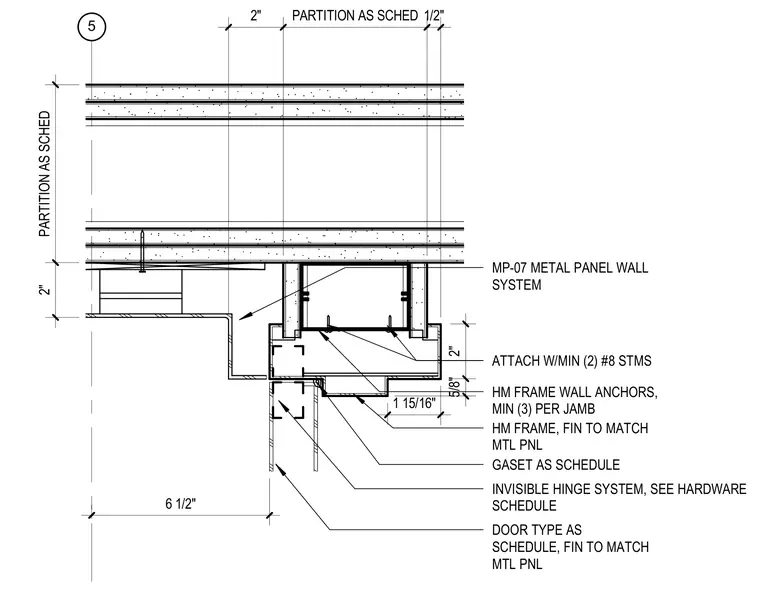

A metal panel wall system intersects a hollow metal door frame assembly. The assembly incorporates an MP-07 metal panel wall system secured with a minimum of two number eight sheet metal screws. The hollow metal frame features wall anchors with a minimum of three per jamb and matches the metal panel finish. An invisible hinge system is integrated per the hardware schedule to accommodate the door type as scheduled.
5 INVISIBLE HINGE SYSTEM, SEE HARDWARE SCHEDULE 2" PARTITION AS SCHED 6 1/2" HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME, FIN TO MATCH MTL PNL ATTACH W/MIN (2) #8 STMS GASET AS SCHEDULE DOOR TYPE AS SCHEDULE, FIN TO MATCH MTL PNL MP-07 METAL PANEL WALL SYSTEM 2" PARTITION AS SCHED 1/2" 5/8" 2" 1 15/16"
